輥壓機

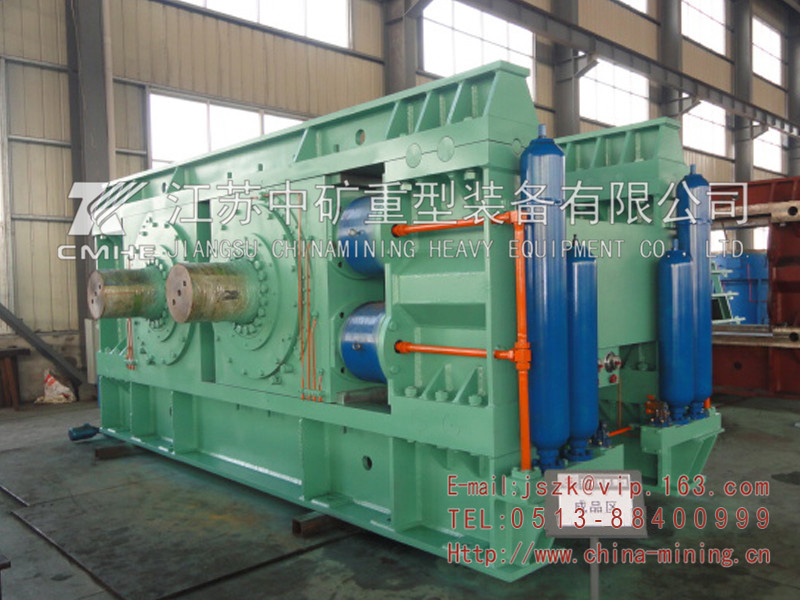

      輥壓機是本公司承接的新型水泥節能粉磨設備，能全部或部分替代能耗高的球磨機系統，并且具 有耗材少、噪音低的功能，適用于新廠建設，也可用于老廠技術改造。選用該設備后，可使球磨機系統產量提高40—100%，經過擠壓后的物料料餅中0.08mm細料占20-55%,小于2mm占65-85%，小顆粒的內 部結構因受擠壓而充滿許多微小裂紋，易磨性大為改善。輥面采用熱堆焊，耐磨層維修更為方便。
       本公司多年來不斷追求改進、創新，已形成了一套成熟的設備技術和完整的粉磨工藝，主要特點：
1、輯面堆焊采用進口焊機和先進的耐磨焊條及工藝技術進行焊接，使用壽命大幅度提高。
2、利用航空技術生產的液壓油缸性能可靠。
3、自控系統采用觸摸屏動態顯示。自動控制配有專家診斷系統，故障自動解除，控制可靠。
4、配套打散分級機，V型分級機和回轉式打散分級機。分選率達90%。

        The roll squeezer is a new type energy-saving cement powder mill firstly manufactured by our company. It can completely or partially replace the ball mill with high energy consumption. It is featured by few consumables and low noise. It can be used for new factory construction and for old factory technical reconstruction. This equipment can help the ball mill system improve the output by 40—100%.
The squeezed material pie has 20~55% tiny particles of 0.08mm and 65—85% particles smaller than 2mm. The small particles are full of tiny cracks for being squeezed, so the grindability is greatly improved.
The roll surface is welded in the hot build-up way so that the maintenance of the wear-resistant layer is more convenient.
        Our company has been pursuing reform and innovation for years, and has formed a set of mature technologies and complete grinding techniques. The main characteristics are as follows:
1. The build-up welding on the roll surface is done by the imported welder and with the internationally advanced wear-resistant welding rods and techniques. The service life increases greatly.
2.The hydraulic cylinder produced by using aeronautical technology has a reliable performance.
3.The automatic control system has a touch screen. It has a professional diagnosis system so that the trouble can be removed automatically. The control is reliable.

輥壓機技術參數 Technique parameter



輥壓機技術參數Technical parameter
型號 Model	輥徑 Diameter	輥寬 Width	喂 料粒度上限 Max material granularity	喂 料溫度上限 Max material temperature	預粉碎能力 Expected grinding capacity		主電動機Main motor			整機 重量 Unit Weight
					熟料 Clinker(t/h)	生料Raw material (t/h)	型號 Model	功率Power（KW）	電壓Voltage (v)
G200-180	Φ2000	1800	80	≤100	920~1150	920 ~1250	YRKK630	1800x2	6000?10000	340
G200-120	Φ2000	1200	75	≤100	730~850	750~1000	YRKK560	1400x2		300
G180-120	Φ1800	1200	75	≤100	650~760	660~780	YRKK560	1250x2		225
G170-100	Φ1700	1000	70	≤100	580~670	600~680	YRKK500	900x2		190
G160-140	Φ1600	1400	65	≤100	600~720	650~760	YRKK560	1120x2		210
G150-100	ΦI 500	100	60	≤150	460~500	485~520	YRKK500	710x2		178
G140-80	Φ1400	800	55	≤150	320~360	330~390	YRKK560	630x2		115
G140-70	Φ1400	700	55	≤150	240~300	260~320	YRKK500	500x2		110
G120-50	Φ1200	500	50	≤150	110~175	175~190	Y355L	250x2	380	65
G120-45	Φ1200	450	50	≤150	95~150	110~175	Y355L	220x2		62
G100-35	Φ1000	350	45	≤80	45~60	50 ~ 70	Y355M	185x2		30
G100-30	Φ1000	300	45	≤80	40~50	45 ~65	Y355M	160x2		30
G80-25	Φ800	250	40	≤80	20~30	25 ~ 35	Y315S	90x2		23

工作原理
      輥壓機是根據料床粉磨原理設計而成，其主要特征是：高壓、滿速、滿料、料床粉碎。輥壓機由兩個相向同步轉動的擠壓輥組成，一個為固定輥，一個為活動輥。
物料從兩輥上方給入，被擠壓輥連續帶入輥間，受到100-150MPa的高壓作用后，變成密實的料餅從機下排出。排出的料餅，除含有一定比例的細粒成品外。在非成品顆粒的內部，產生大量裂紋，改善了物料的易磨性，且在進一步粉碎過程中，可較大地降低粉磨能耗。
      物料通過磨輥主要分為三個階段：滿料密集、層壓粉碎、結團排料階段。

主要結構
       輥壓機由機架、兩個輥系、傳動裝置、扭矩支承、輥罩、進料裝置、液壓（加壓）系統、主軸承潤滑系統、干油潤滑系統、電氣系統等部份組成。
