PB-Ⅰ/PB-Ⅱ平板閘門

丁寶勤 13906276368(技術)

電話：0513-88400999 傳真：0513-88400998 郵箱：[email protected]

PB-Ⅰ/PB-Ⅱ平板閘門是粉料、晶粒料、小顆粒料的流量輸送控制的主要設備。廣泛適用于冶金、礦山、建材、糧食、化工等行業。PB-Ⅰ平板閘門配備電動、氣動、電液動推桿作為驅動裝置，是控制流量大小，切斷迅速的設備。
Flat valve is a main equipment to control and convey powder material, crystal material and small grain material.
It is widely used in metallurgical, ore, building material，foodstuff and chemical industry etc. The valve has motorized, pneumatic and motorized and hydraulic handspike as driving device. It is an ideal equipment to control flow and quick cutting.

結構特點：
PB-Ⅰ/PB-Ⅱ平板閘門具有結構簡單，操作自如，密封性能優良，局部阻力損失小，切斷快，維護保養方便，不易變形等特點。
Structure features
It is characterized by simple structure, free operation, excellent sealing, small resistance, quick cutting and convenient maintenance and not easy to deform etc.

工作原理：
　　平板閘門主要由執行機構、閥體、插板、密封裝置、行程開關等部件組成。運行時輸出指令（電源或氣源）給執行機構，由執行機構帶動插板向外推出，達到工況需要位置，轉動行程開關停止，由行程開關反饋信號（開關信號）給控制室。反之則關閉插板閥（向內推進）。

Work principle
Flat valve is mainly composed of actuator, valve body, inserting plate, sealing device and travel switch etc. When driving, output instructions(power or gas source) to actuator. Actuator drive inserting plate outside and meet work condition. Otherwise close inserting valve (inside toward).

公稱壓力	介質流速	適用溫度		適用介質
0.05MPa	≤28m/s	≤350℃	≤500℃	空氣、粉塵氣體、固體粉料、晶體料

傳動裝置參數(The parameter of driving device)

規格 Specification	200?450	500-630	700?900	1000-140
電動推桿Motorized handspike	DT I A63-M P: 0.19KW	DT II A63-M P: 0.25KW	DT II A250-M P: 0.37KW	DT II A500-M P: 0.75KW
氣動推桿Pneumatic handspike	10A-5TC50B	10A-5TC63B	10A-5TC80B	10A-5TC100B
電液推桿Motorized and hydraulic handspike	DYT100 P：0.37KW		DYT300 P: 0.37KW	DYT500 P: 0.55KW

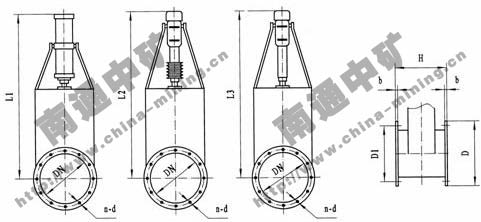

PB-Ⅰ連接尺寸：

DN	D	D1	b	H	n-d	L1	L2	L3
200	280	245	6	250	8-Φ10	960	1270	1320
250	350	305	6	250	12-Φ10	1170	1480	1530
300	400	355	6	250	12-Φ10	1320	1630	1680
350	450	405	6	250	12-Φ12	1470	1780	1830
400	500	455	6	250	16-Φ12	1620	1930	1980
450	550	505	8	250	16-Φ12	1770	2080	2130
500	600	555	8	250	20-Φ14	1930	2220	2280
560	660	615	8	250	20-Φ14	2110	2400	2460
600	700	655	8	350	20-Φ14	2230	2520	2580
630	730	685	8	350	20-Φ14	2320	2610	2670
700	800	755	8	350	20-Φ14	2550	2820	2880
750	850	805	10	350	20-Φ14	2700	2970	3030
800	900	855	10	350	24-Φ14	2850	3120	3180
850	950	905	10	350	24-Φ14	3000	3270	3330
900	1000	955	10	350	24-Φ14	3150	3420	3480
1000	1130	1070	12	450	28-Φ18	3540	3940	3880
1100	1230	1170	12	450	28-Φ18	3840	4240	4180
1200	1330	1270	12	450	28-Φ18	4140	4540	4480
1300	1430	1370	12	450	32-Φ18	4440	4840	4780
1400	1530	1470	12	450	36-Φ18	4740	5140	5080

PB-Ⅱ連接尺寸：

A×A	B×B	C×C	b	H	n-d	L1	L2	L3
200×200	245×245	280×280	4	250	8-Φ10	960	1270	1320
250×250	305×305	350×350	4	250	12-Φ10	1170	1480	1530
300×300	355×355	400×400	4	250	12-Φ10	1320	1630	1680
350×350	405×405	450×450	4	250	12-Φ12	1470	1780	1830
400×400	455×455	500×500	4	250	16-Φ12	1620	1930	1980
450×450	505×505	550×550	4	250	16-Φ12	1770	2080	2130
500×500	555×555	600×600	4	250	20-Φ14	1930	2220	2280
560×560	615×615	660×660	4	250	20-Φ14	2110	2400	2460
600×600	655×655	700×700	6	350	20-Φ14	2230	2520	2580
630×630	685×685	730×730	6	350	20-Φ14	2320	2610	2670
700×700	755×755	800×800	6	350	20-Φ14	2550	2820	2880
750×750	805×805	850×850	6	350	20-Φ14	2700	2970	3030
800×800	855×855	900×905	6	350	24-Φ14	2850	3120	3180
850×850	905×905	950×955	6	350	24-Φ14	3000	3270	3330
900×900	955×955	1000×1000	6	350	24-Φ14	3150	3420	3480
1000×1000	1070×1070	1130×1130	6	450	28-Φ18	3540	3940	3880
1100×1100	1170×1170	1230×1230	6	450	28-Φ18	3840	4240	4180
1200×1200	1270×1270	1330×1330	6	450	28-Φ18	4140	4540	4480
1300×1300	1370×1370	1430×1430	6	450	32-Φ18	4440	4840	4780
1400×1400	1470×1470	1530×1530	6	450	36-Φ18	4740	5140	5080
