壓力平衡閥
丁寶勤 13906276368(技術)
電話：0513-88400999 傳真：0513-88400998 郵箱：[email protected]

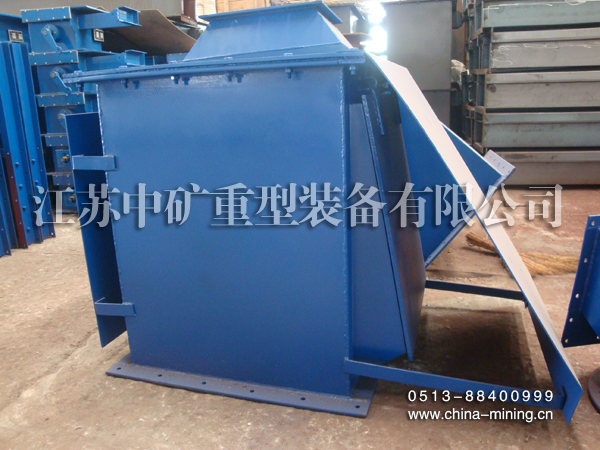

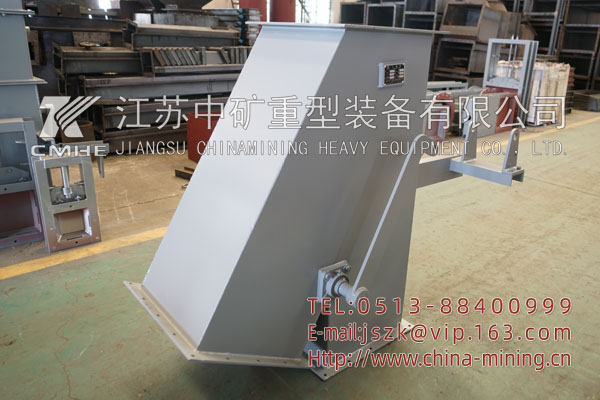

壓力平衡閥采用優質碳素鋼制成，用來平衡庫內外壓力，其庫內氣體卸出壓力可由閥門的重錘來決定。
Pressure balance valve is made from excellent carbon steel to balance the pressure inside and outside silo. Discharge pressure in silo is decided by the hammer of valve.
壓力平衡閥規格 | A | B | C | D | E |
100×100 | 100 | 710 | 210 | 100 | 100 |
220×220 | 220 | 881 | 310 | 220 | 150 |
450×450 | 450 | 1116 | 510 | 450 | 150 |
